Standard Winkel – Schneidring Verschraubung für unverselle Anwednungen
Material: Stahl
Beschichtung: Zi-Ni

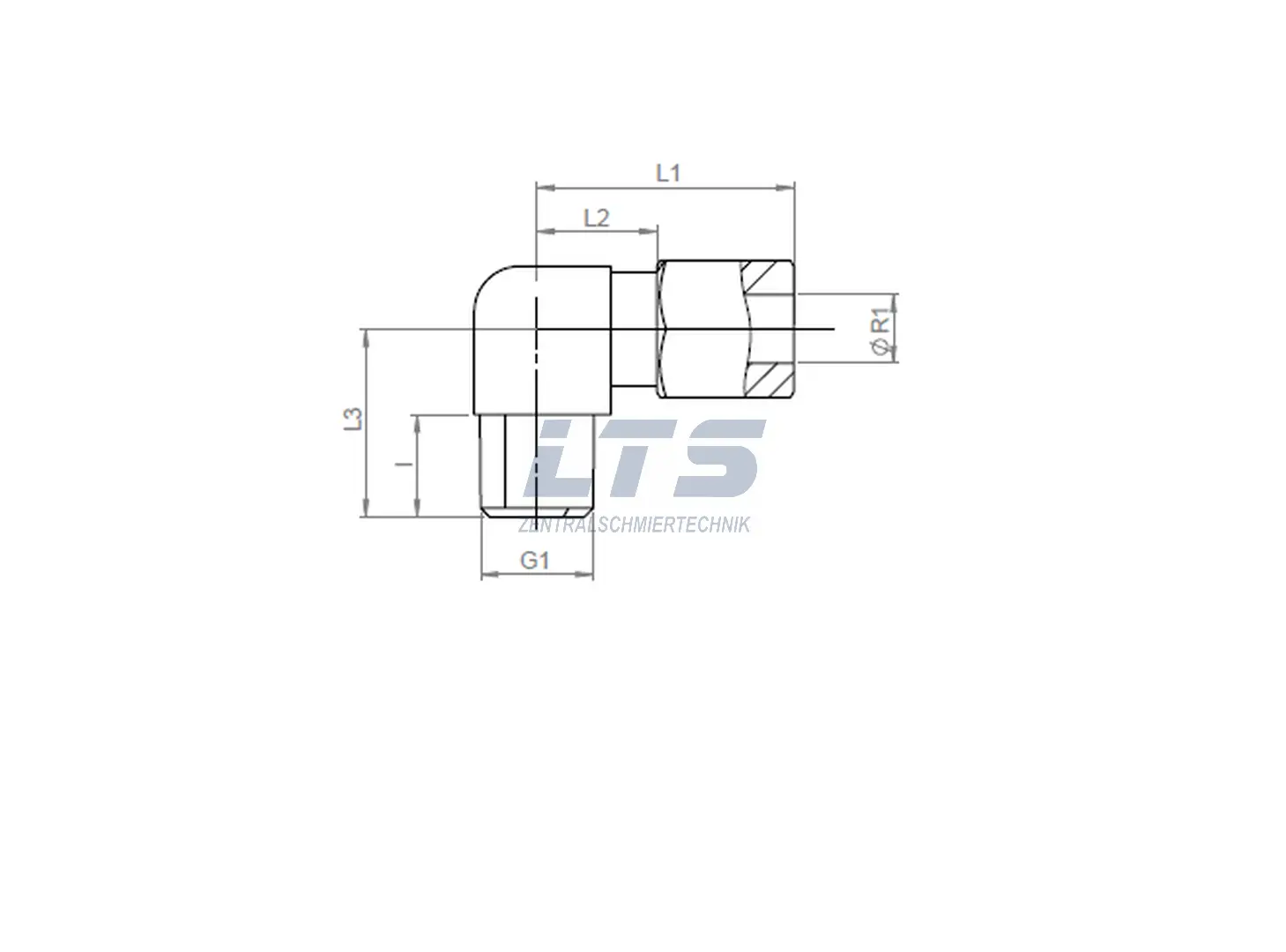

| Artikel NR | G1 | SW1 | SW2 | l | L1 | L2 | L3 | ØR1 | Baugröße |
|---|---|---|---|---|---|---|---|---|---|
| 10110690041 | M6x1k | 9 | 10 | 8 | 21 | 11 | 17 | 4 | LL |
| 10110890041 | M8x1k | 9 | 10 | 8 | 21 | 11 | 17 | 4 | LL |
| 10130890041 | M8k | 9 | 10 | 8 | 21 | 11 | 17 | 4 | LL |
| 10111090041 | M10x1k | 11 | 10 | 8 | 21 | 11 | 17 | 4 | LL |
| 10161890041 | R1/8 | 11 | 10 | 8 | 21 | 11 | 17 | 4 | LL |
| 10110690061 | M6x1k | 11 | 12 | 8 | 22 | 9.5 | 17 | 6 | LL |
| 10110890061 | M8x1k | 11 | 12 | 8 | 22 | 9.5 | 17 | 6 | LL |
| 10130890061 | M8k | 11 | 12 | 8 | 22 | 9.5 | 17 | 6 | LL |
| 10111090061 | M10x1k | 11 | 12 | 8 | 22 | 9.5 | 17 | 6 | LL |
| 10161890061 | R1/8 | 11 | 12 | 8 | 22 | 9.5 | 17 | 6 | LL |
| 10161490062 | R1/4 | 12 | 14 | 9.5 | 28.5 | 14 | 26 | 6 | L |
| 10161490063 | R1/4 | 14 | 17 | 9.5 | 34 | 16 | 16 | 6 | S |
| 10111090081 | M10x1 | 12 | 14 | 8 | 23 | 11.5 | 17 | 8 | LL |
| 10161890081 | R1/8 | 12 | 14 | 8 | 23 | 11.5 | 17 | 8 | LL |
